Spreader type

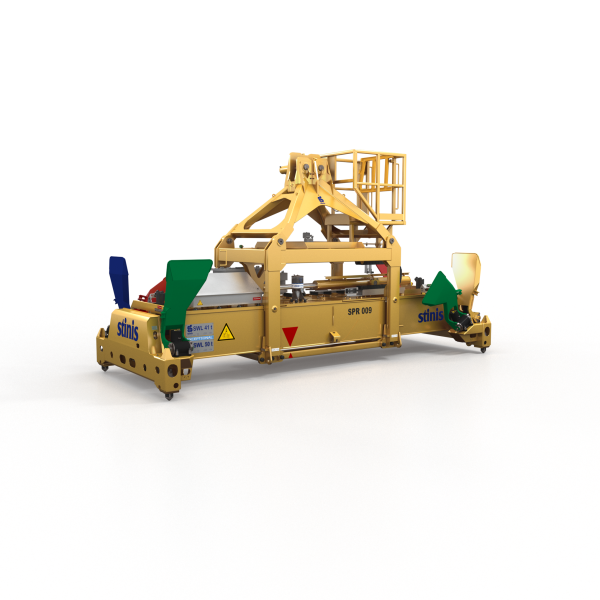

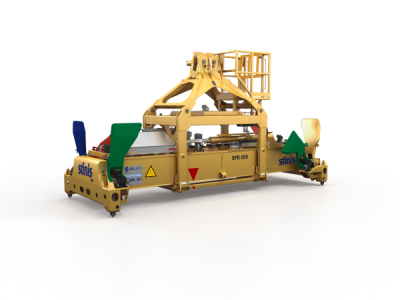

Single Lift

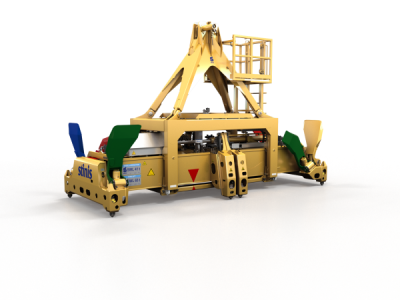

Twin Lift

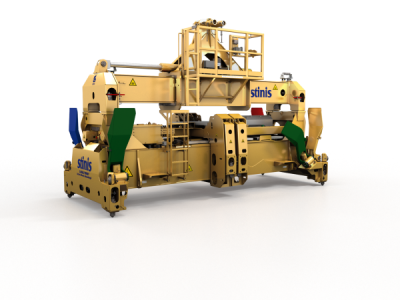

long-Twin
Mobile Harbour Crane Spreaders features
Optimized
Visibility
Our monobeam constructions allows for a slim midframe that gives your operators optimal sight lines on the container and its surroundings, while your technicians have easy access during maintenance.
Easy To Use
Touch Screen
Our spreaders are equipped with a touch screen that displays valuable information such as the spreader status and error logs. The touch screen also allows for manual spreader control to support your crews during tests and maintenance.
Fast & Smooth
Telescoping
We achieve great telescope speeds because we use a hydraulic powered, steel reinforced rubber belt to move the monobeam. This construction is optimized for high speed, high durability, low sound emissions and little maintenance. It doesn’t even need to be lubricated!
Powerful
Flippers
Our flippers are made of high tensile steel and are driven by cylinder based actuators. Stinis flippers have proven to be ultra-powerful when guiding the spreader onto the container resulting in more container moves per hour.
Double pin connection
With the double pin set-up it takes very little time and effort to connect our spreaders to the crane hook. The double pin configuration also stabilises the spreader for containers or other cargo.
Automatic greasing system
Our automatic greasing system can service up to 80 greasing points on your spreader. The system guarantees consistent spreader performance and reduces wear and tear. You see this returned as less downtime and lower maintenance cost.
Hydraulic Loadsense System
The spreader is equipped with an energy saving hydraulic system. The setup uses a pump with a variable output which allows the pressure, flow and power to be controlled. When no functions are being used on the spreader, and thus no oil is needed, the pump will reduce its variable output to the absolute minimum.
Twin Twenty Detection System
TTDS is a security system that prevents the spreader from locking onto two containers while the spreader is in single mode. The system uses gap and roof sensors to ensure that a pair of containers cannot be mistaken for a single one.
Automatic Leveling
Use automatic leveling to compensate a weight difference of up to 15 tons between two containers.
Patented Twistlock Design
The twistlock is one of the most critical components of your spreader. Our patented double collar twistlock design provides the longest possible life span for your twistlocks and allows for easy removal of the twistlock nut for non-destructive testing.
Collision Protection
A mechanical blocking device is mounted inside the midframe to absorb shocks to the end beam that result from a collision with a container or the cells inside a vessel. This improves the spreader life span and reduces the need for costly maintenance.
Mobile Harbour Crane Spreaders Options
LED Lights
Dimmable
Our spreaders can be equipped with dimmable LED lights. Several options are available to enhance safety.
LED Lights At
The Twistlocks
Time pressure leaves no room for error, let alone accidents. To improve operator performance and for safety purposes, LED lights can be installed at the twistlocks to improve visibility of the corner castings of the container. These are very effective in combination with twistlock cameras when working in the ship’s cells.
Cameras At
The Twistlocks
Clear vision is essential for maintaining optimal levels of efficiency and safety when you lift cargo. Your preferred camera type can be mounted on the adjustable brackets.
Corner Roll
Cell Guidance
Cell guidance reduces friction between the spreader and the ship cell, which decreases the risk of a spreader getting stuck inside the vessel. The reduced friction also allows for higher speeds of operation inside the ship, which, allows your operators to do their best work.
Corner Pyramid
Cell Guidance
Cell guidance reduces friction between the spreader and the ship cell, which decreases the risk of a spreader getting stuck inside the vessel. The reduced friction also allows for higher speeds of operation inside the ship, which, allows your operators to do their best work.
45 ft
positioning
Our Mobile Harbour Crane spreaders are capable of telescoping to a 45' position. Landing and lifting can be done with flippers down to accurately position the spreaders on the containers and speed up the process
Height indication
system
The Height Indication System consists of a proximity switch (reach 0.8 – 6 meter) with 1 or 2 set-points, to measure the distance between the underside of the spreader and the top of the container. This system allows you to reduce the landing speed when approaching the container.

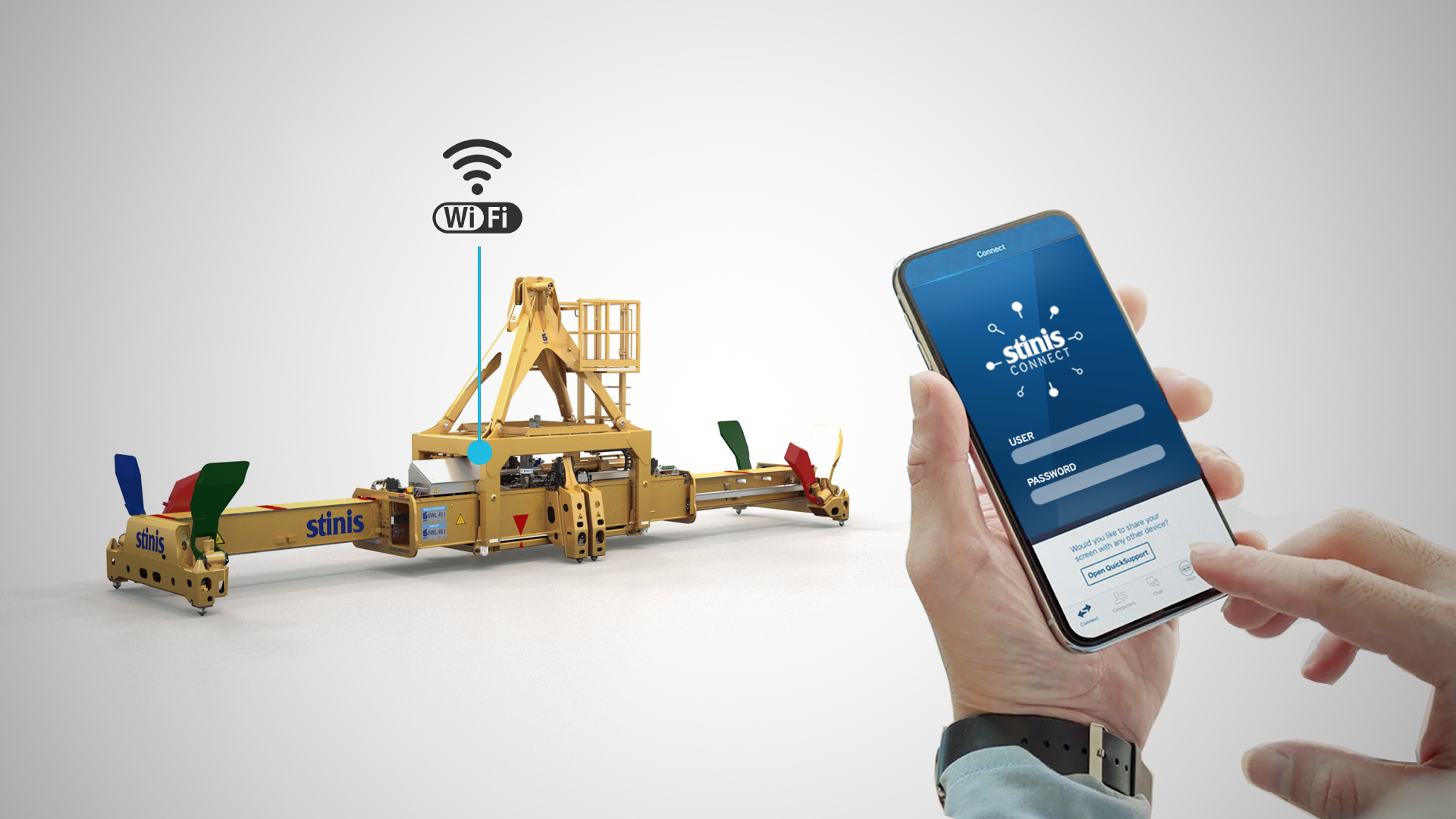

Stinis
Insight
Improve the performance of your spreader fleet with our remote monitoring system. Stinis Insights reports the health status and performance of your spreader fleet and gives insights into spreader status and fault messages for instant trouble shooting.
Active Shock
Absorption®
Our active shock absorption system reduces noise at your terminal. This enables you to operate 24/7 even if your terminal is in the vicinity of residential areas. The decreased shocks also help increase the lifespan of the spreader.
Working
Platform
Equip your spreader with a special working platform, making it easier to maintain your spreader and to manually connect the spreader with the crane.
Stacking Fitting
Boxes (LTW only)
The mono-beam structure enables us to reduce the width of the midframe of the spreader. This allows you to install stacking fitting boxes on the side of the side of the spreader.
Memory Positioning
system (LTW only)
The Height Indication System consists of a proximity switch (reach 0.8 – 6 meter) with 1 or 2 set-points, to measure the distance between the underside of the spreader and the top of the container. This system allows you to reduce the landing speed when approaching the container.
SPREADER TYPE
single lift
TWIN LIFT
long-twin
Mobile Harbour Crane Spreaders Features
Our monobeam constructions allows for a slim midframe that gives your operators optimal sight lines on the container and its surroundings, while your technicians have easy access during maintenance.
Optimized Visibility
Our spreaders are equipped with a touch screen that displays valuable information such as the spreader status and error logs. The touch screen also allows for manual spreader control to support your crews during tests and maintenance.
Easy To Use Touch Screen
We achieve great telescope speeds because we use a hydraulic powered, steel reinforced rubber belt to move the monobeam. This construction is optimized for high speed, high durability, low sound emissions and little maintenance. It doesn’t even need to be lubricated!
Fast & Smooth Telescoping
Our flippers are made of high tensile steel and are driven by cylinder based actuators. Stinis flippers have proven to be ultra-powerful when guiding the spreader onto the container resulting in more container moves per hour.
Powerful Actuated Flippers
With this double pin set-up it takes very little time and effort to connect our spreaders to the crane hook. The double pin configuration also stabilises the spreader for containers or other cargo.
double pin connection
Our automatic greasing system can service up to 80 greasing points on your spreader. The system guarantees consistent spreader performance and reduces wear and tear. You see this returned as less downtime and lower maintenance cost.
Automatic greasing system
The spreader is equipped with an energy saving hydraulic system. The system uses a pump with a variable output which allows the pressure, flow and power to be controlled. When no functions are being used on the spreader, and thus no oil is needed, the pump will reduce its variable output to the absolute minimum.
Hydraulic Loadsense system
TTDS is a security system that prevents the spreader from locking onto two containers while the spreader is in single mode. The system uses gap and roof sensors to ensure that a pair of containers cannot be mistaken for a single one.
twin twenty detection system
Use automatic leveling to compensate for a weight difference of up to 15 tons between two containers.
automatic leveling
The twistlock is one of the most critical components of your spreader. Our patented double collar twistlock design provides the longest possible life span for your twistlocks and allows for easy removal of the twistlock nut for non-destructive testing.
Patented Twistlock Design
A mechanical blocking device is mounted inside the midframe to absorb shocks to the end beam that result from a collision with a container or the cells inside a vessel. This improves the spreader life span and reduces the need for costly maintenance.
collision protection
EVERY MOVE
Our telescopic container spreaders for mobile harbour cranes are powered by hydraulics, providing high torque for spreader movements. These spreaders are stable, safe and reliable.
Mobile Harbour Crane Spreaders Options
Our spreaders can be equipped with dimmable LED lights. Several options are available to enhance safety.
LED Lights Dimmable
Time pressure leaves no room for error, let alone accidents. To improve operator performance and for safety purposes, LED lights can be installed at the twistlocks to improve visibility of the corner castings of the container. These are very effective with twistlock cameras.
led lights at the twistlocks
Clear vision is essential for maintaining optimal levels of efficiency and safety when you lift cargo. Your preferred camera type can be mounted on the adjustable brackets.
Cameras at the twistlocks
Cell guidance reduces friction between the spreader and the ship cell, which decreases the risk of a spreader getting stuck inside the vessel. The reduced friction also allows for higher speeds of operation inside the ship, which, allows your operators to do their best work.
Corner Roll Cell Guidance
Cell guidance reduces friction between the spreader and the ship cell, which decreases the risk of a spreader getting stuck inside the vessel. The reduced friction also allows for higher speeds of operation inside the ship, which, allows your operators to do their best work.
Corner Pyramid Cell Guidance
Our Mobile Harbour Crane spreaders are capable of telescoping to a 45' position. With flippers it is possible to accurately position and land the spreader onto the container, which can speed up the container handling process.
45 ft positioning
The Height Indication System consists of a proximity switch (reach 0.8 – 6 meter) with 1 or 2 set-points, to measure the distance between the underside of the spreader and the top of the container. This system allows you to reduce the landing speed when approaching the container.
height indication system
Improve the performance of your spreader fleet with our remote monitoring system. Stinis Insights reports the health status and performance of your spreader fleet and gives insights into spreader status and fault messages for instant trouble shooting.
Stinis Insight
Our active shock absorption system reduces noise at your terminal. This enables you to operate 24/7 even if your terminal is in the vicinity of residential areas. The decreased shocks also help increase the lifespan of the spreader.
Active Shock Absorption®
Equip your spreader with a special working platform, making it easier to maintain your spreader and to manually connect the spreader with the crane.
Working Platform
The mono-beam structure enables us to reduce the width of the midframe of the spreader. This allows you to install stacking fitting boxes on the side of the side of the spreader.
Stacking Fitting Boxes (LTW only)
Adjust the long-twin distance from 0 to 1600 mm and configure different set points for the twin unit distance.
Memory Positioning (LTW Only)
Spreader type
Single lift
Twin lift
Long-twin
Mobile Harbour Crane Spreaders features
Our monobeam constructions allows for a slim midframe that gives your operators optimal sight lines on the container and its surroundings, while your technicians have easy access during maintenance.
Optimized Visibility
Optimized Visibility
Our spreaders are equipped with a touch screen that displays valuable data such as status and error logs. The touch screen also shows manual spreader control to support your crews during tests and maintenance.
Easy To Use Touch Screen
Easy To Use Touch Screen
We achieve great telescope speeds due to a hydraulic steel reinforced rubber belt to move the monobeam. It is optimized for high speed, high durability, low sound emissions and little maintenance. It doesn’t even need to be lubricated!
Fast & Smooth Telescoping
Fast & Smooth Telescoping
Our flippers are made of high tensile steel and are driven by cylinder based actuators. Stinis flippers have proven to be ultra-powerful when guiding the spreader onto the container resulting in more container moves per hour.
Powerful Flippers
Powerful Actuated Flippers
With the double pin set-up it takes very little time and effort to connect our spreaders to the crane hook. The double pin configuration also stabilises the spreader for containers or other cargo.
Double pin connection
Double Pin Connection
Our automatic greasing system services up to 80 points on your spreader, ensuring consistent performance, minimizing downtime, and lowering maintenance costs.
Automatic greasing system
Automatic Greasing System
The spreader is equipped with an energy saving hydraulic system. It uses a pump with a variable output which controlls the pressure, flow and power. When no oil is needed, the pump will reduce its variable output to the absolute minimum.
Hydraulic Loadsense System
Hydraulic Loadsense System
TTDS is a security system that prevents the spreader from locking onto two containers while the spreader is in single mode. The system uses gap and roof sensors to ensure that a pair of containers cannot be mistaken for a single one.
Twin Twenty Detection System
Twin 20 Detection System
Use automatic leveling to compensate a weight difference of up to 15 tons between two containers.
Automatic Leveling
Automatic Leveling
The twistlock is one of the most critical components of your spreader. Our patented double collar twistlock design provides the longest possible life span for your twistlocks and allows for easy removal of the twistlock nut for non-destructive testing.
Patented Twistlock Design
Patented Twistlock Design
A mechanical blocking device inside the midframe absorbs shocks to the end beam caused by container collisions, enhancing spreader lifespan and minimizing costly maintenance.
Collision Protection
Collision Protection
Mobile Harbour Crane Spreaders Options
Our spreaders can be equipped with dimmable LED lights. Several options are available to enhance safety.
LED Lights Dimmable
LED Lights Dimmable
Time pressure allows no room for errors or accidents. Enhance operator performance and safety by installing LED lights at twistlocks for better visibility of container corner castings. This is highly effective when used with twistlock cameras in ship's cells.
LED Lights At The Twistlocks
LED Lights At The Twistlocks
Clear vision is essential for maintaining optimal levels of efficiency and safety when you lift cargo. Your preferred camera type can be mounted on the adjustable brackets.
Cameras At The Twistlocks
Cameras At The Twistlocks
Cell guidance minimizes friction between the spreader and ship cell, lowering the risk of getting stuck. This reduced friction enables higher operating speeds inside the ship, allowing operators to perform optimally.
Corner Roll Cell Guidance
Corner Roll Cell Guidance
Cell guidance minimizes friction between the spreader and ship cell, lowering the risk of getting stuck. This reduced friction enables higher operating speeds inside the ship, allowing operators to perform optimally.
Corner Pyramid Cell Guidance
Corner Pyramid Cell Guidance
Our Mobile Harbour Crane spreaders are capable of telescoping to a 45' position. Landing and lifting can be done with flippers down to accurately position the spreaders on the containers and speed up the process.
45 ft positioning
45ft positioning
The Height Indication System, with a proximity switch (range 0.8 – 6 meters) and 1 or 2 set-points, measures the distance between the spreader underside and container top. It enables reducing landing speed when approaching the container.
Height indication system
Height Indication System
Improve the performance of your spreader fleet with our remote monitoring system. Stinis Insights reports the health status and performance of your spreader fleet and gives insights into spreader status and fault messages for instant trouble shooting.
Stinis Insight
Stinis Insight
Our active shock absorption system reduces noise at your terminal. This enables you to operate 24/7 even if your terminal is in the vicinity of residential areas. The decreased shocks also help increase the lifespan of the spreader.
Active Shock Absorption®
Active Shock Absorption
Equip your spreader with a special working platform, making it easier to maintain your spreader and to manually connect the spreader with the crane.
Working Platform
Working Platform
The mono-beam structure enables us to reduce the width of the midframe of the spreader. This allows you to install stacking fitting boxes on the side of the side of the spreader.
Stacking Fitting Boxes (LTW only)
Stacking Fitting Boxes (LTW only)
The Height Indication System consists of a proximity switch (reach 0.8 – 6 meter) with 1 or 2 set-points, to measure the distance between the underside of the spreader and the top of the container. This system allows you to reduce the landing speed when approaching the container.
Memory Positioning system (LTW only)
Memory Positioning System (LTW only)
